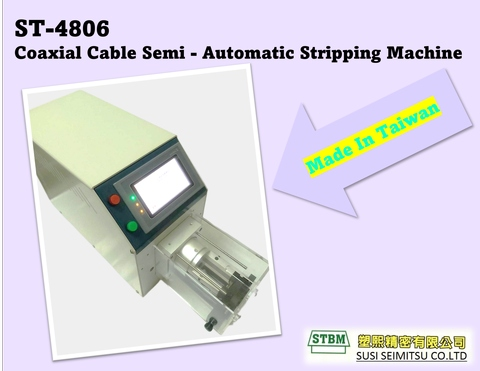

ST-4806 Coaxial Cable Semi- Automatic Stripping Machine

Model No.
ST-4806 半自動同軸剝線機　
Made in
Taiwan
Request for Quotation
Contact Supplier


    Taiwan Semi-Automatic Stripping Machine for Coaxial Cable

    Spec

    • machine size:525*186*218mm
    • 1:1

    Key Features

    model

    ST-4806

    Suitable Material

    Coaxial cable

    Power Supply

    AC220V/50HZ

    Stripping Length

    0.1mm—48mm

    Unit of cutting length

    0.01mm

    Available Wire Size

    Φ0.2mm—Φ6.99mm

    Unit of cutting depth

    0.01mm

    Max layers of wire stripping

    9layers

    Productivity

    500-700pcs/h

    Display mode

    Touchscreen

    Display interface

    LCD in Chinese 138X86

    Max of power

    300W

    Startup mode

    Ball screw drive

    Dimension

    525×186×278mm

    Weight

    19kg

    Blade Material

    Tungsten Steel

    Work environment

    0-45°C

    Clamping device

    Self-aligning



    1. Innovation is our forte and we strive to manufacture, supply and export a broad spectrum of Coaxial Cable Semi-automatic Stripping Machine.

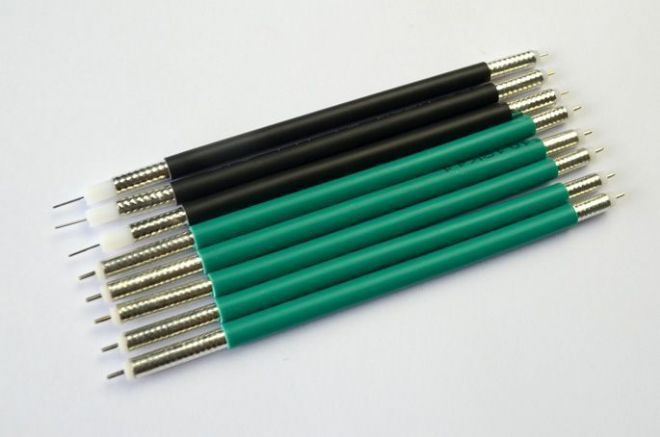

    2. ST-4806 is a Coaxial Cable Semi-automatic Stripping Machine for processing coaxial cables and single-core wire.
    3. ST-4806 has the latest electronic design, simple operation platform, precision mechanical stability and excellent peeling quality.
    4. Coaxial Cable Semi-automatic Stripping Machine has multiple sets of data storage function, can switch at anytime, will greatly enhance your productivity.
